Marlin 300 Main Specifications
Beam Amidships
10'7" (3.23 m)
Center Line Length w/o Engines
30'6" (9.30 m)
Bridge Clearance
9'9" (2.97 m)
Weight w/o Engines
8221 lb. (3729 kg)
Cockpit Depth
29" (0.74 m)
Hull Draft
23" (0.58 m)
Transom Deadrise
19.5 degrees (SeaV2® progression)
Maximum HP
700 (522 kW)
Fuel Capacity - Standard
282 gal. (1067 l)
Marlin 300 Features & Options
Select camera icons where available to view feature photos
Denotes feature as trademarked, exclusive, patented, or patent pending
Safety
2 automatic bilge pumps (total 2600 GPH) (9842 LPH)
Basic flotation
Bow rail - 316 grade stainless steel
Cockpit toe rails
Composite stringer system & transom - water impervious
Nonskid fiberglass liner
Nonskid recessed walkaround
Self-bailing cockpit w/cockpit drains (4)
Stainless steel through-hull fittings
Cabin
Accessory outlet - 5V duplex USB port
Berth - aft double berth
Berth - forward vee berth
Carbon monoxide detector
Door - lockable w/screen & companionway hatch
Forward hatch - low profile acrylic hatch w/screen & shade
Galley - port galley w/sink, light & Corian® cutting board
Head - enclosed head area w/sink, shower, lamp & VacuFlush® marine head w/freshwater supply, 10-gallon (38 l) holding tank, overboard discharge & deck pump out
Lighting - dome (2)
Lighting - reading (3)
Microwave oven
Mirror
Refrigerator - stainless steel
Rod storage - aft berth horizontal (4)
Rod storage - forward horizontal (6)
Stereo system w/waterproof touch screen display, AM/FM tuner, Wi-Fi & Bluetooth® connectivity & remote unit; speakers w/LED lights - helm (2), cabin (2), cockpit (2)
Storage - galley cabinets & counter
Storage - under berth compartments
Storage nets
Stove - electric glass top
Table - cherry
Teak & holly sole
Water heater - 6-gallon (22.7 l), 120V
Water tank - 32-gallon (121.1 l) freshwater
Windows - tinted frameless acrylic w/shade
Cockpit & Deck
100% hand laid SeaV² hull & deck
Accessory outlet - 5V duplex USB port
Accessory outlet - 12V
Anchor windlass w/rode, line, and remote switches at helm & windlass
Batteries (4) w/battery select switches (one per engine) & charger system (1)
Bow pulpit w/roller
Cleats
Cockpit bolsters
Cockpit freshwater shower w/hot & cold mixer
Cockpit lights - blue LED
Cockpit side door - port w/boarding ladder
Companion grab rail
Deck hardware - 316 grade stainless steel through-bolted
Dockside power w/galvanic isolator
Drink holders - stainless steel (9)
Engine flush system w/hose attachment aft (one per engine)
Factory engine pre-rigging
Fighting chair reinforcement
Fish box - 290-qt. (274.4 l) aft insulated fish box w/light & ob drain
Flush mount electronics area
Footrests - helm & companion (fold down)
Freshwater level indicator
Fuel capacity - 282 gallons (141-gallon tank, 141-gallon tank) (1067 l)
Hardtop w/painted aluminum frame, radio box, storage nets, spreader lights, side mounted rod holders (4), outrigger plates & drop, front & side curtains (ivory)
Hydraulic trim tabs w/indicator & retractor
Integrated outboard mounting system w/swim platform & ladder
International lighting
Livewell - 32-gallon (121.1 l) port insulated raw water livewell w/light, full column distribution inlet & ob drain (1100 GPH pump) (4164 LPH)
Rigging station - freshwater sink, insulated bait box w/ob drain & lockable drawers
Rod holders - cockpit (4)
Rod storage racks - horizontal (3)
Rubrail - high density PVC w/stainless steel insert
Seating - Command Elite helm & companion chairs (2) horizontally & vertically adjustable w/deluxe cushioning & flip-up bolster
Seating - foldaway aft bench seat w/cushion
Seating - foredeck cushions
Seating - port livewell cushion
Seating - starboard rigging station cushion
Steering - Helm Master® EX w/Integrated Digital Electric Steering (does not include joystick)
Steering wheel - 316 grade stainless steel w/knob
Stern eyes - 316 grade stainless steel
Storage - aft deck lift out box
Storage - forward anchor locker w/rode storage
Storage - lockable storage under helm & companion seats
Storage - under step compartment
Transducer mounting flats
Transom door - fiberglass
Washdown - freshwater
Washdown - pressurized raw water w/hose
Water tank - 32-gallon (121.1 l)
Windshield - tempered glass w/side vents
Windshield wipers w/starboard washer
Options
Air conditioning - 8000 BTU in cabin
Bow thruster
CE certification package (European Conformity)
Generator - 5kW diesel, 12-gallon (45.4 l) fuel capacity
Hardtop color - underside of fiberglass hardtop (requires matching gelcoat hull color option)
Hull color - Celestial Blue, Coastal Fog, Ocean Mist, or Sea Glass gelcoat
International AC electrical conversion - 220V (50Hz)
Lighting - underwater blue LED (3)
Outrigger kit - 18-ft. (5.5 m) crank hardtop mounted stainless steel outriggers w/carbon fiber poles
Painted hardtop top mounted rod holders (6)
Rod storage - folding cabin rack (4)
Seating - companion bench seat (replaces Command Elite companion chair)
Steering - Helm Master® EX w/Full Maneuverability
TV - 19" LED flat screen w/HDMI inlet
Marlin 300 Performance Data
300 Yamaha Four-Stroke
Twin
Top Speed: 49.5 MPH @ 5800 RPM
Optimum Cruise: 29.7 MPH @ 3800 RPM
GPH at Optimum Cruise: 21.5
MPG at Optimum Cruise: 1.38
CLASSIC WHITE
Standard
350 Yamaha Four-Stroke
Twin
Top Speed: 54.9 MPH @ 6000 RPM
Optimum Cruise: 29.6 MPH @ 3500 RPM
GPH at Optimum Cruise: 17.6
MPG at Optimum Cruise: 1.68
CLASSIC WHITE
Standard
300 Yamaha Four-Stroke
Twin
Engine Size
4.2L
Test Date
9/22/2010
Prop Size
15 1/2 X 17 SWS II SDS
Weight as Tested
11697 lb. (including persons, fuel, water, gear, engines & accessories))
Hardtop
Yes
Bow Pulpit
Yes
Bottom Paint
No
Optimum Cruise
29.7 MPH @ 3800 RPM
| RPM | MPH | GPH | MPG |
|---|---|---|---|
| 1000 | 6.0 | 2.6 | 2.31 |
| 1500 | 7.9 | 4.1 | 1.94 |
| 2000 | 8.8 | 6.7 | 1.31 |
| 2500 | 9.7 | 10.0 | 0.97 |
| 3000 | 14.6 | 12.8 | 1.14 |
| 3500 | 26.4 | 18.0 | 1.47 |
| 3800 | 29.7 | 21.5 | 1.38 |
| 4000 | 31.5 | 23.9 | 1.32 |
| 4500 | 36.6 | 30.7 | 1.19 |
| 5000 | 42.0 | 40.4 | 1.04 |
| 5500 | 46.4 | 50.7 | 0.92 |
| 5800 | 49.5 | 52.3 | 0.95 |
350 Yamaha Four-Stroke
Twin
Engine Size
4.3L
Test Date
5/2/24
Prop Size
15 1/4 X 19 SWS II SDS
Weight as Tested
11411 lb. (including persons, fuel, water, gear, engines & accessories))
Hardtop
Yes
Bow Pulpit
No
Bottom Paint
No
Optimum Cruise
29.6 MPH @ 3500 RPM
| RPM | MPH | GPH | MPG |
|---|---|---|---|
| 1000 | 6.3 | 2.5 | 2.52 |
| 1500 | 8.6 | 4.3 | 2.00 |
| 2000 | 10.1 | 6.9 | 1.46 |
| 2500 | 13.9 | 10.7 | 1.30 |
| 3000 | 18.2 | 13.8 | 1.32 |
| 3500 | 29.6 | 17.6 | 1.68 |
| 4000 | 34.7 | 22.5 | 1.54 |
| 4500 | 40.0 | 28.7 | 1.39 |
| 5000 | 45.2 | 37.6 | 1.20 |
| 5500 | 50.3 | 51.1 | 0.98 |
| 6000 | 54.9 | 62.1 | 0.88 |
300 Yamaha Four-Stroke
Twin
Engine Size
4.2L
Test Date
9/22/2010
Prop Size
15 1/2 X 17 SWS II SDS
Weight as Tested
11697 lb. (including persons, fuel, water, gear, engines & accessories)
Hardtop
Yes
Bow Pulpit
Yes
Bottom Paint
No
Optimum Cruise
29.7 MPH @ 3800 RPM
| RPM | MPH | GPH | MPG |
|---|---|---|---|
| 1000 | 6.0 | 2.6 | 2.31 |
| 1500 | 7.9 | 4.1 | 1.94 |
| 2000 | 8.8 | 6.7 | 1.31 |
| 2500 | 9.7 | 10.0 | 0.97 |
| 3000 | 14.6 | 12.8 | 1.14 |
| 3500 | 26.4 | 18.0 | 1.47 |
| 3800 | 29.7 | 21.5 | 1.38 |
| 4000 | 31.5 | 23.9 | 1.32 |
| 4500 | 36.6 | 30.7 | 1.19 |
| 5000 | 42.0 | 40.4 | 1.04 |
| 5500 | 46.4 | 50.7 | 0.92 |
| 5800 | 49.5 | 52.3 | 0.95 |
350 Yamaha Four-Stroke
Twin
Engine Size
4.3L
Test Date
5/2/24
Prop Size
15 1/4 X 19 SWS II SDS
Weight as Tested
11411 lb. (including persons, fuel, water, gear, engines & accessories)
Hardtop
Yes
Bow Pulpit
No
Bottom Paint
No
Optimum Cruise
29.6 MPH @ 3500 RPM
| RPM | MPH | GPH | MPG |
|---|---|---|---|
| 1000 | 6.3 | 2.5 | 2.52 |
| 1500 | 8.6 | 4.3 | 2.00 |
| 2000 | 10.1 | 6.9 | 1.46 |
| 2500 | 13.9 | 10.7 | 1.30 |
| 3000 | 18.2 | 13.8 | 1.32 |
| 3500 | 29.6 | 17.6 | 1.68 |
| 4000 | 34.7 | 22.5 | 1.54 |
| 4500 | 40.0 | 28.7 | 1.39 |
| 5000 | 45.2 | 37.6 | 1.20 |
| 5500 | 50.3 | 51.1 | 0.98 |
| 6000 | 54.9 | 62.1 | 0.88 |

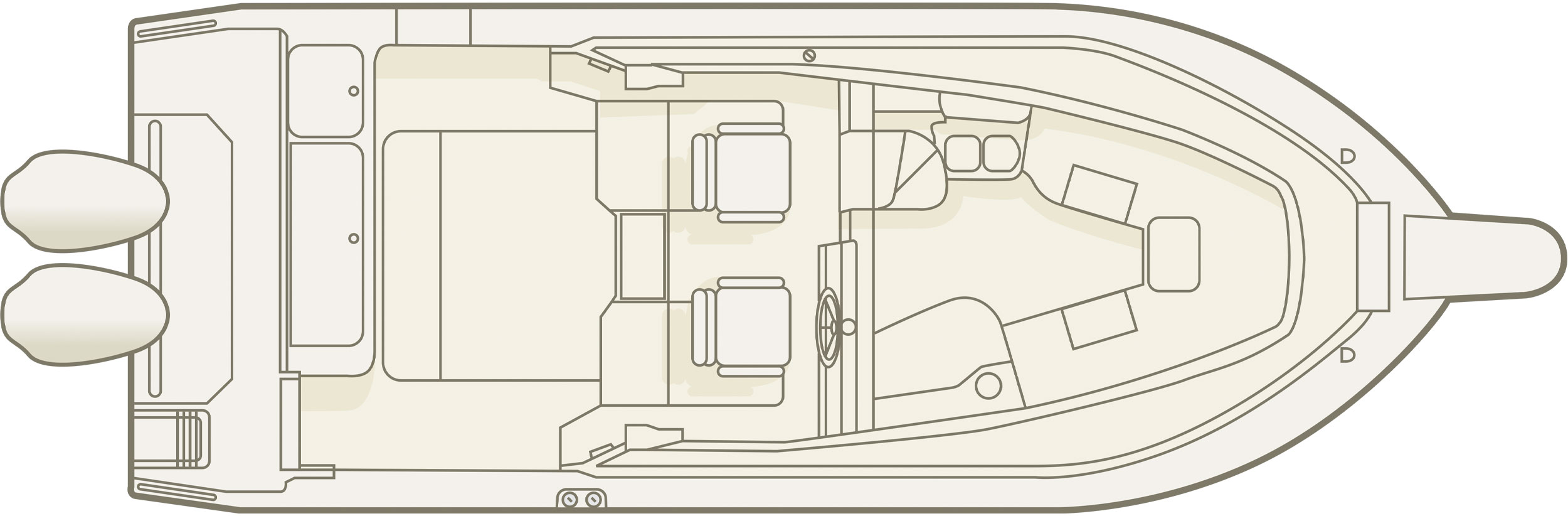

Marlin 300 Overhead
