Fisherman 236

23' CENTER CONSOLE

The most feature-rich 23-foot center console, Grady-White’s Fisherman 236 is a superior fishing boat and more family friendly than any competitive models. Standard features that make this boat remarkable include a 15.5-gallon livewell, an oversized enclosed head, and a transom door that makes it easy to board fish or get in and out of the water from the swim platform. Grady’s patented seating designs add comfort for up to 10 passengers. From the bow seating with forward facing foldaway backrests to the foldaway aft bench seat, there’s room for everyone.

PHOTO GALLERY

Photo Gallery

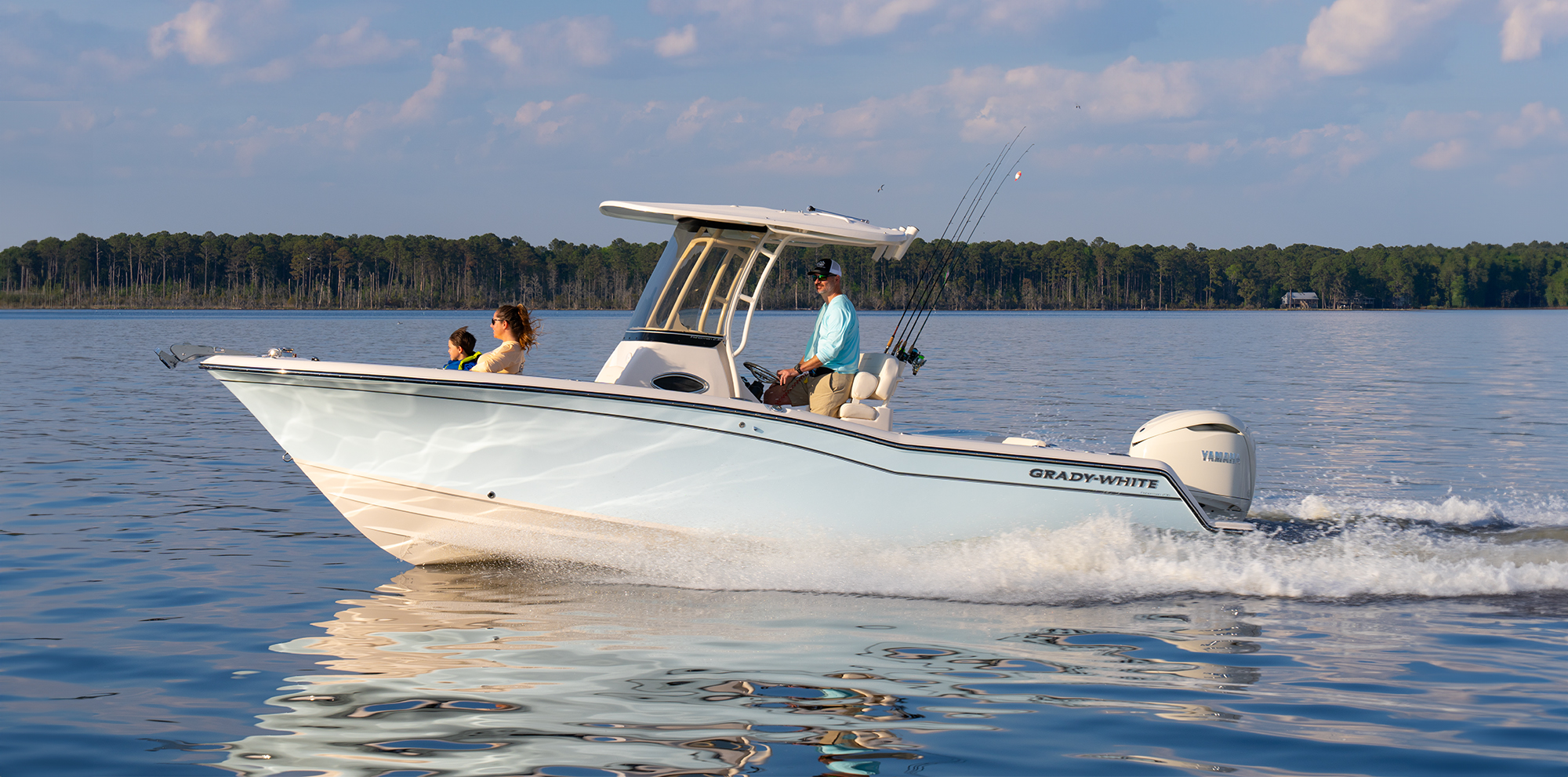

Grady-White Fisherman 236 23-foot center console family fishing

Grady-White Fisherman 236 23-foot center console cruising boat

Grady-White Fisherman 236 23-foot center console running bow forward

Grady-White Fisherman 236 23-foot center console running port side

Grady-White Fisherman 236 23-foot center console bow overall

Grady-White fisherman 236 23-foot center console bow storage boxes

Grady-White Fisherman 236 23-foot center console helm overall

Grady-White Fisherman 236 23-foot center console lean bar

Grady-White Fisherman 236 23-foot center console bow seating with table

Grady-White Fisherman 236 23-foot center console deluxe lean bar with backrest

Grady-White Fisherman 236 23-foot center console cockpit overall

Grady-White Fisherman 236 23-foot center console foldaway aft bench seat

Grady-White Fisherman 236 23-foot center console forward console seat with cushioned backrest

Grady-White Fisherman 236 23-foot center console head

Grady-White Fisherman 236 23-foot center console with bow casting platform insert

Grady-White Fisherman 236 23-foot center console aft swim ladder

Grady-White Fisherman 236 23-foot center console port profile

Grady-White Fisherman 236 23-foot center console boat profile beach

DOWNLOAD MODEL POSTER

main specs

Fisherman 236 Main Specifications

Beam Amidships

8'6" (2.59 m)

Center Line Length w/o Engines

23'7" (7.18 m) (swim platforms not included)

LOA w/Swim Platforms

25'7" (7.80 m)

Bridge Clearance

8' (2.44 m)

Cockpit Depth

25" (0.64 m)

Hull Draft

18.5" (0.47 m)

Transom Deadrise

20 degrees (SeaV^2® progression)

Maximum HP

350 (261 kW)

Fuel Capacity - Standard

100 gal (379 l)

Passenger Capacity

10 Weight w/o Engines

3900 lb. (1769 kg)

features & options

Fisherman 236 Features & Options

If your PDF does not download, click here.

Select camera icons where available to view feature photos

Denotes feature as trademarked, exclusive, patented, or patent pending

STANDARD FEATURES

Safety

Automatic bilge pump (1500 GPH) (5678 LPH)

Basic flotation

Fisherman 236 23 foot center console bow overall view

Bow grab rail - low profile 316 grade stainless steel

Cockpit toe rails

Composite stringer system & transom - water impervious

Nonskid fiberglass liner

Grady-White Fisherman 236, 23ft center console self-bailing cockpit.

Self-bailing cockpit w/cockpit drains (4)

Stainless steel through-hull fittings

Cockpit & Deck

Fisherman 236 23 foot center console 100% hand laid SeaV2 hull and deck

100% hand laid SeaV² hull & deck

Fisherman 236 center console batteries and battery select switches

Batteries (2) w/battery select switch (1)

Fisherman 236 23 foot center console cleats pull up flush mount

Cleats - flush mount (pull up)

Cockpit bolsters

Fisherman 236 center console Grady-White with fresh water cockpit shower

Cockpit freshwater shower (recessed)

Fisherman 236 23 foot center console blue LED cockpit lights.

Cockpit lights - blue LED

Deck hardware - 316 grade stainless steel through-bolted

Fisherman 236 center console Grady-White with bow drink holder and grab rail

Drink holders - stainless steel (8)

Fisherman 236 23 foot center console engine flush system with hose attachment aft

Engine flush system w/hose attachment aft

Factory engine pre-rigging

Fisherman 236 23 foot center console aft insulated box

Fish box - 160-qt. (151.4 l) aft insulated box w/ob drain

Fisherman 236 center console Grady-White with bow port and starboard fish boxes

Fish box - 89-qt. (84.2 l) forward port & starboard insulated fish box w/ob drain (2)

Forward bolsters

Grady-White Fisherman 236, 23ft center console hydraulic trim tabs.

Hydraulic trim tabs w/indicator & retractor

Fisherman 236 23 foot center console international lights

International lighting

Fisherman 236 23 foot center console raw water aft livewell

Livewell - 15.5-gallon (58.7 l) aft insulated raw water livewell w/light, full column distribution inlet & ob drain (800 GPH pump) (3028 LPH)

Fisherman 236 center console rod holders

Rod holders - cockpit (4)

Fisherman 236 23 foot center console horizontal rod storage

Rod storage racks - horizontal (6)

Fisherman 236 23 foot center console high density PVC rubrail with high density with stainless steel insert

Rubrail - high density PVC w/stainless steel insert

Fisherman 236 23 foot center console standard lean bar

Seating - lean bar w/backrest, flip-up bolster, knife & pliers holder (1), tackle trays, lockable storage, rod holders (4) & fire extinguisher holder

Grady-White Fisherman 236, 23ft center console folding aft bench seat.

Seating - foldaway aft bench seat w/cushion

Seating - port & starboard cushioned bow seating w/forward facing foldaway bolstered backrest (2)

Grady-White Fisherman 236 23-foot center console fishing boat stereo system.

Stereo system w/waterproof touch screen display, AM/FM tuner & Wi-Fi & Bluetooth® connectivity; speakers w/LED lights - bow (2), helm (2)

Grady-White Fisherman 236 23-foot center console fishing boat stern eyes.

Stern eyes - 316 grade stainless steel

Fisherman 236 center console Grady-White with forward anchor locker

Storage - forward anchor locker w/rode storage

Grady-White Fisherman 236, 23ft center console swim platforms with boarding ladder.

Swim platforms - aft port & starboard extensions w/storage & starboard ladder

Fisherman 236 center console Grady-White with transom door

Transom door - fiberglass

Fisherman 236 23 foot center console pressurized raw water washdown with hose

Washdown - pressurized raw water w/hose

Water tank - 10-gallon (38 l) freshwater

Console

Accessory outlet - 5V duplex USB port

Compass

Fisherman 236 center console Grady-White with cooler under forward console seat

Cooler/ice box - 29-qt. (27 l) insulated storage box under forward console seat

Drink holders - stainless steel (2)

Grady-White Fisherman 236, 23ft center console flush mount electronics.

Flush mount electronics area

Footrest - molded console footrest

Fisherman 236 console storage area with head and window

Head - lockable console w/portable head, stand up head area, indirect lighting, bulk storage & cherry & holly sole

Fisherman 236 center console Grady-White with forward console seat

Seating - molded forward console seat w/cushion & backrest

Grady-White Fisherman 236, 23ft center console Helm Master EX® w/ integrated digital electric steering.

Steering - Helm Master® EX w/Integrated Digital Electric Steering (does not include joystick)

Grady-White Fisherman 236, 23ft center console steering wheel.

Steering wheel - 316 grade stainless steel w/knob

Fisherman 236 center console Grady-White with T-top and underside color

T-top - fiberglass w/painted aluminum frame, storage net, LED spreader lights, rod holders (4), tri-colored (red, blue, white) LED recessed lights (3), radar flat & outrigger plates

Window - opening window w/screen

Fisherman 236 center console Grady-White with T-top windshield

Windshield - scratch resistant acrylic integrated w/T-top

OPTIONAL FEATURES

Options

Fisherman 236 center console with optional anchor windlass

Anchor windlass w/rode, line, and bow roller

Fisherman 236 center console Grady-White with bow casting platform insert

Casting platform insert w/cushion

CE certification package (European Conformity)

Fisherman 236 23 foot center console port side cockpit step

Cockpit step (port)

Grady-White Fisherman 236, 23ft center console head.

Head - portable w/deck pump out

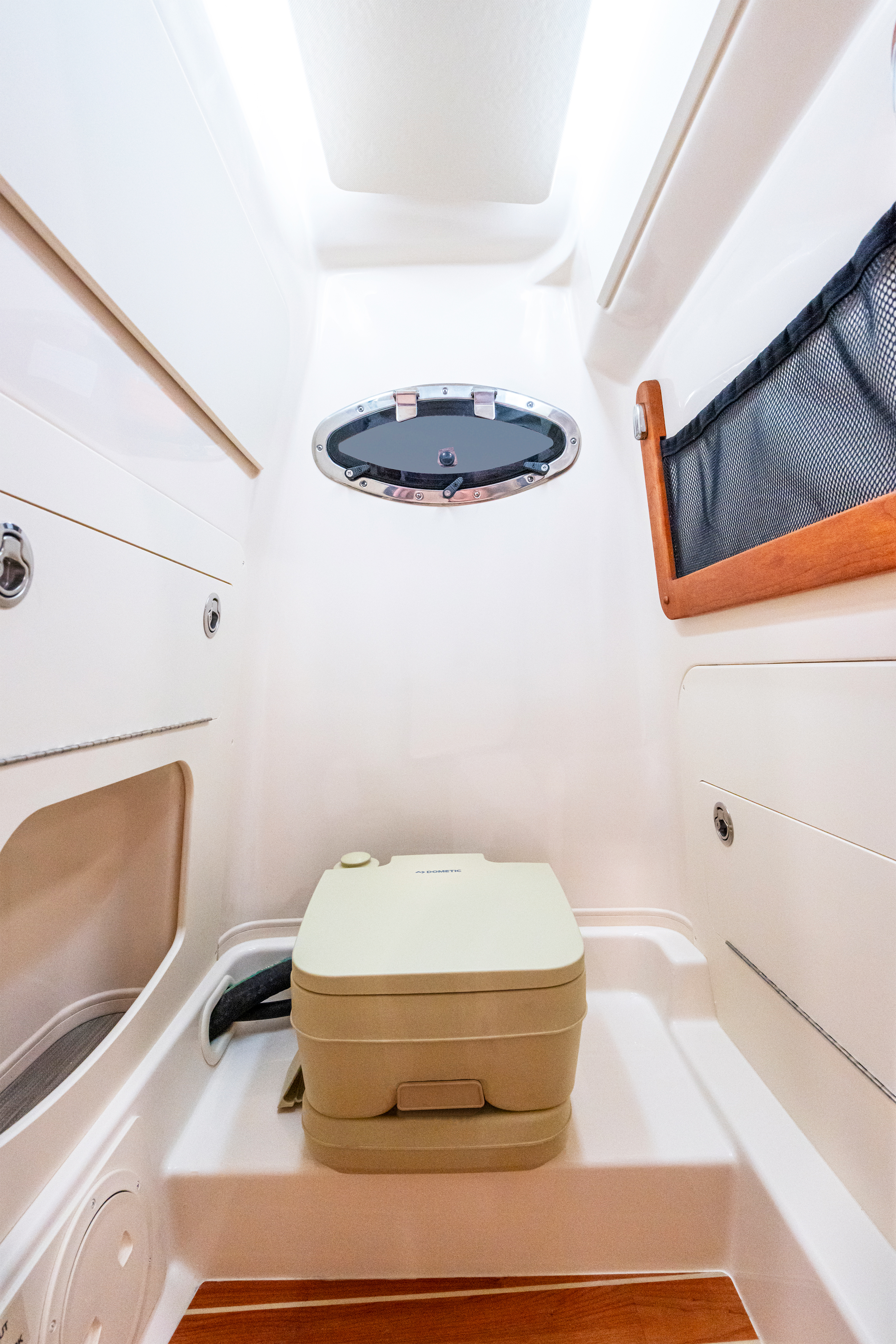

Grady-White Fisherman 236 23-foot center console fishing boat head deck pump out.

Head - portable w/in-line macerator, overboard discharge & deck pump out

Hull color - Celestial Blue, Coastal Fog, Ocean Mist, or Sea Glass gelcoat

Fisherman 236 center console Grady-White with outrigger kit

Outrigger kit - 18-ft. (5.5 m) crank T-top mounted stainless steel outriggers w/carbon fiber poles

Fisherman 236 center console Grady-White with deluxe lean bar seating at helm

Seating - Deluxe lean bar w/backrest, lockable storage, rod holders (4), 25-gal. (95 l) insulated raw water livewell (under seat) w/light, full column distribution inlet & ob drain (800 GPH pump) (3028 LPH)

Ski pylon

Steering - Helm Master® EX w/Full Maneuverability

Fisherman 236 center console Grady-White with bow table

Table - fiberglass bow table (requires casting platform insert)

T-top color - underside of fiberglass T-top (requires matching gelcoat hull color option)

Windshield wiper

Canvas Options

Bow shade shown here on the Fisherman 257 center console Grady-White boat

Easy up bow shade (ivory mesh)

T-top wing curtains (ivory)

performance

Fisherman 236 Performance Data

300 Yamaha Four-Stroke

Single

Top Speed: 46.6 MPH @ 5900 RPM

Optimum Cruise: 29.3 MPH @ 3700 RPM

GPH at Optimum Cruise: 9.7

MPG at Optimum Cruise: 3.02

350 Yamaha Four-Stroke

Single

Top Speed: 51.9 MPH @ 5900 RPM

Optimum Cruise: 29.8 MPH @ 3600 RPM

GPH at Optimum Cruise: 9.8

MPG at Optimum Cruise: 3.00

300 Yamaha Four-Stroke

Single

Engine Size

4.2L

Test Date

06/18/16

Prop Size

15 1/2 X 17 SWS II SDS

Weight as Tested

5733 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop

Yes

Bow Pulpit

Bottom Paint

Optimum Cruise

29.3 MPH @ 3700 RPM

RPM	MPH	GPH	MPG
1000	5.4	1.3	4.32
1500	7.5	2.1	3.63
2000	8.7	3.5	2.45
2500	13.3	5.3	2.50
3000	19.5	6.6	2.95
3500	27.9	9.0	3.09
3700	29.3	9.7	3.02
4000	32.2	11.7	2.75
4500	36.8	15.1	2.44
5000	41.0	19.0	2.16
5500	44.8	23.3	1.93
5900	46.6	26.2	1.78

Back To Engines

PERFORMANCE DISCLAIMERS

The following variables can affect performance: wind, current, sea conditions, speed, engine performance, transducer, trolling time, engine trim, bottom paint, trim tabs, curtains, tops, gear placement and prop size/condition/type. This report should be used only as a general reference guide. Prop size, pitch and prop features listed in this performance report reflect the available props factory installed on new boats from Grady-White at this time. Props cited in the report may be an updated version(s) of the prop(s) used at the time of the test.

350 Yamaha Four-Stroke

Single

Engine Size

4.3L

Test Date

4/18/24

Prop Size

15 1/4 X 19 SWS II SDS

Weight as Tested

5556 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop

Yes

Bow Pulpit

Bottom Paint

Optimum Cruise

29.8 MPH @ 3600 RPM

RPM	MPH	GPH	MPG
1000	5.5	1.3	4.23
1500	6.9	2.2	3.14
2000	7.8	3.7	2.11
2500	14.5	5.6	2.59
3000	20.2	7.0	2.89
3500	28.9	9.0	3.21
3600	29.8	9.8	3.00
4000	34.0	12.2	2.79
4500	38.5	15.4	2.50
5000	43.7	20.3	2.15
5500	48.3	29.2	1.65
5900	51.9	30.3	1.71

Back To Engines

PERFORMANCE DISCLAIMERS

300 Yamaha Four-Stroke

Single

Engine Size

4.2L

Test Date

06/18/16

Prop Size

15 1/2 X 17 SWS II SDS

Weight as Tested

5733 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop

Yes

Bow Pulpit

Bottom Paint

Optimum Cruise

29.3 MPH @ 3700 RPM

RPM	MPH	GPH	MPG
1000	5.4	1.3	4.32
1500	7.5	2.1	3.63
2000	8.7	3.5	2.45
2500	13.3	5.3	2.50
3000	19.5	6.6	2.95
3500	27.9	9.0	3.09
3700	29.3	9.7	3.02
4000	32.2	11.7	2.75
4500	36.8	15.1	2.44
5000	41.0	19.0	2.16
5500	44.8	23.3	1.93
5900	46.6	26.2	1.78

350 Yamaha Four-Stroke

Single

Engine Size

4.3L

Test Date

4/18/24

Prop Size

15 1/4 X 19 SWS II SDS

Weight as Tested

5556 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop

Yes

Bow Pulpit

Bottom Paint

Optimum Cruise

29.8 MPH @ 3600 RPM

RPM	MPH	GPH	MPG
1000	5.5	1.3	4.23
1500	6.9	2.2	3.14
2000	7.8	3.7	2.11
2500	14.5	5.6	2.59
3000	20.2	7.0	2.89
3500	28.9	9.0	3.21
3600	29.8	9.8	3.00
4000	34.0	12.2	2.79
4500	38.5	15.4	2.50
5000	43.7	20.3	2.15
5500	48.3	29.2	1.65
5900	51.9	30.3	1.71
