Freedom 325

32' DUAL CONSOLE

The perfect day boat just got even better! The addition of the all new AV^2® hardtop makes the 32-foot Freedom 325 an incredibly versatile boat for both offshore fishing, all-around coastal cruising, and entertaining. A beamy, spacious, high-quality dual console boat, the 325 has luxurious cabin features with two consoles, one with a berth and bulk storage, and the other with head, sink, and storage closet. There are too many standard features to name–but some include a sun platform, livewell, and access doors on both the port side and at the transom. Top it off with an optional generator, air conditioning, and a wet bar with refrigerator for a boat that provides all-day comfort and function.

PHOTO GALLERY

Photo Gallery

Grady White Freedom 325 32 Foot Dual Console Fishing Boat Port Console Anchored

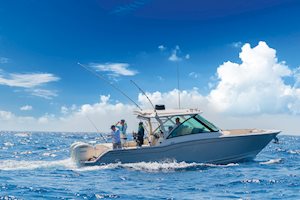

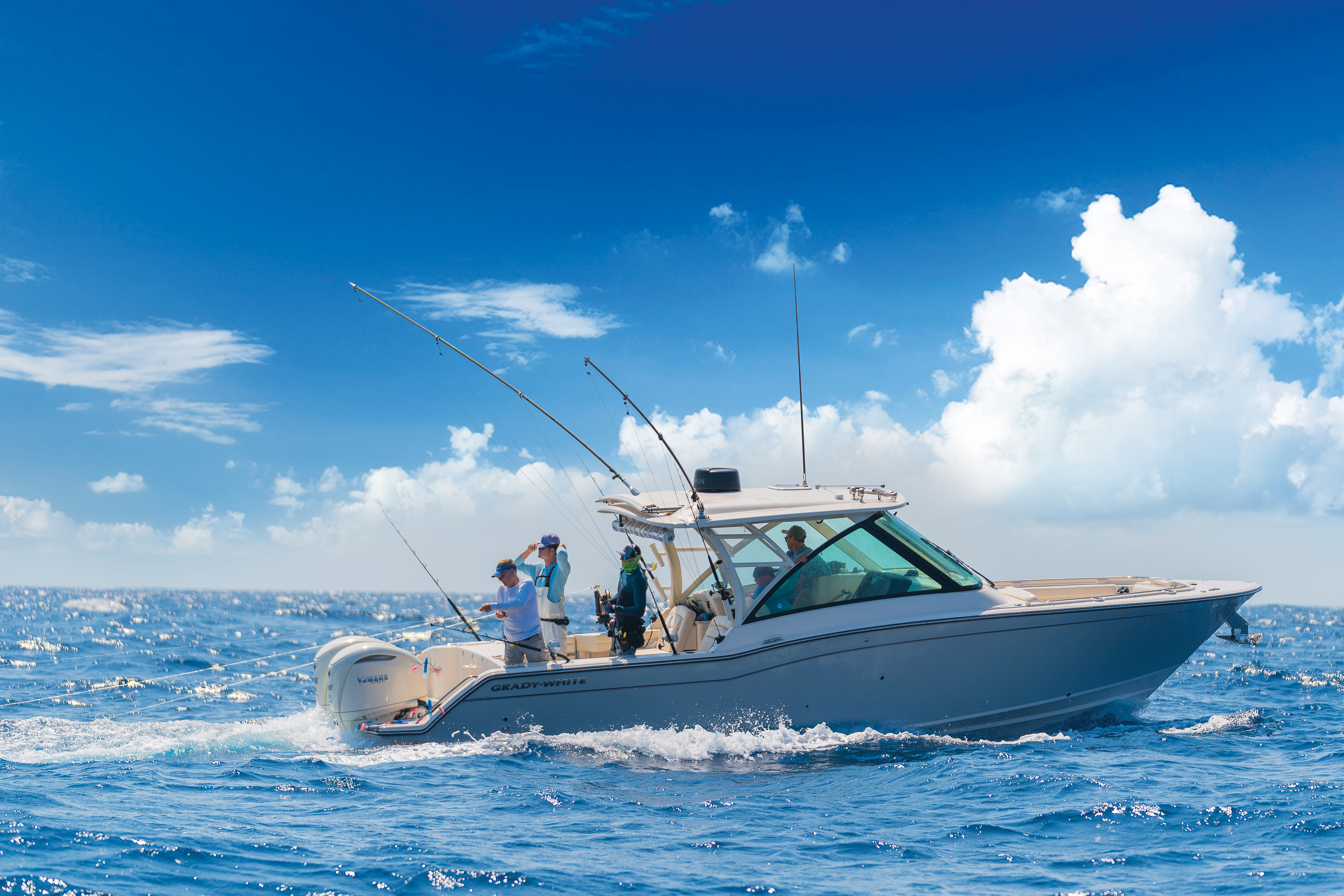

Grady-White Freedom 325 32-foot dual console fishing boat running

Grady-White Freedom 325 32-foot dual console with AV2 windshield

Grady-White Freedom 325 32-foot dual console with AV2 hardtop

Grady-White Freedom 325 32-foot dual console fishing boat helm station

Grady-White Freedom 325 32-foot dual console fishing boat bow seating with insert

Grady-White Freedom 325 32-foot dual console fishing boat cockpit with fold-away aft bench seat and transom door

Grady-White Freedom 325 32-foot dual console fishing boat port console head area

Grady-White Freedom 325 32-foot dual console fishing boat starboard console seating

Grady-White Freedom 325 32-foot dual console fishing boat helm seating

Grady-White Freedom 325 32-foot dual console fishing boat aft seating

Grady-White Freedom 325 32-foot dual console fishing boat bow seating with table

Grady-White Freedom 325 32-foot dual console fishing boat bow sun platform

Grady-White Freedom 325 32-foot dual console fishing boat port console head with storage

Grady-White Freedom 325 32-foot dual console fishing boat starboard console berth

DOWNLOAD MODEL POSTER

main specs

Freedom 325 Main Specifications

Beam Amidships

10'9" (3.28 m)

Center Line Length w/o Engines

31'2" (9.50 m) (swim platforms not included)

LOA w/Swim Platforms

33'1" (10.08 m)

Bridge Clearance

8'7" (2.62 m)

Cockpit Depth

27" (0.69 m)

Hull Draft

24" (0.61 m)

Transom Deadrise

20 degrees (SeaV^2® progression)

Maximum HP

700 (522 kW)

Fuel Capacity - Standard

288 gal. (1090 l)

Weight w/o Engines

9300 lb. (4218 kg)

features & options

Freedom 325 Features & Options

If your PDF does not download, click here.

Select camera icons where available to view feature photos

Denotes feature as trademarked, exclusive, patented, or patent pending

STANDARD FEATURES

Safety

Automatic bilge pumps (2) (total 3000 GPH) (11,356 LPH)

Basic flotation

Bow grab rail - low profile 316 grade stainless steel

Grady-White Freedom 325 dual console boat rod storage racks and toe rails.

Cockpit toe rails

Composite stringer system & transom - water impervious

Fire extinguisher holder

Nonskid fiberglass liner

Self-bailing cockpit w/cockpit drains (6)

Stainless steel through-hull fittings

Cockpit & Deck

100% hand laid SeaV² hull & deck

Grady-White Freedom 325, 32ft dual console 5V accessory outlet.

Accessory outlet - 5V duplex USB port (2)

Accessory outlet - 12V (2)

Grady-White Freedom 325 dual console boat anchor windlass and switches.

Anchor windlass w/rode, line, and remote switches at helm & windlass

Grady-White Freedom 325 32-foot dual console batteries with battery selector switches

Batteries (4) w/battery select switches (one per engine) & charger system (1)

Grady-White Freedom 325 dual console boat cleat.

Cleats - flush mount (pull-up)

Cockpit bolsters

Cockpit freshwater shower (recessed)

Cockpit lights - blue LED

Cockpit side door - port w/boarding ladder

Companion grab rail

Compass

Grady-White Freedom 325 32-foot dual console grab rail mounted on port console

Console grab rail (port)

Cutting board

Deck hardware - 316 grade stainless steel through-bolted

Dockside power w/galvanic isolator

Drink holders - stainless steel (13)

Engine flush system w/hose attachment aft (one per engine)

Factory engine pre-rigging

Grady-White Freedom 325 dual console boat starboard bow fish box.

Fish/ice box - 180-qt. (170 l) starboard bow insulated box w/ob drain

Fish/ice box - 254-qt. (240 l) aft insulated box w/light & ob drain

Grady-White Freedom 325 dual console boat helm overall shown with Helm Master full maneuverability.

Flush mount electronics area

Footrests - helm & companion

Forward bolsters

Hardtop - AV²® enclosure w/painted aluminum frame, grab rail, storage net, LED spreader lights, tri-colored (red, blue, white) LED recessed lights (6), hatch, side mounted rod holders (4), outrigger plates, Clear2Sea™ side curtains (ivory) & SureShade® electrically retractable shade w/Sunbrella® canvas (oyster)

Grady-White Freedom 325, 32ft dual console hydraulic trim tabs.

Hydraulic trim tabs w/indicator & retractor

International lighting

Livewell - 32-gallon (121 l) aft insulated raw water livewell w/light, full column distribution inlet & ob drain (1100 GPH pump) (4146 LPH)

Grady-White Freedom 325 32-foot dual console stainless steel rod holders

Rod holders - cockpit (3), transom (1)

Rod storage racks - horizontal (3)

Rubrail - high density PVC w/stainless steel insert

Grady-White Freedom 325, 32ft dual console port aft facing lounge seat.

Seating - Deluxe companion bench seat (port) w/aft facing electromechanically extendable lounge seat & Corian® countertop

Grady-White Freedom 325, 32ft dual console starboard aft facing lounge seat.

Seating - Deluxe helm seating w/electromechanically extendable, full width starboard lounge seat (will remove starboard wet bar & cockpit step)

Seating - foldaway aft bench seat w/cushion

Seating - port & starboard bow cushioned seating

Steering - Helm Master® EX w/Full Maneuverability

Grady-White Freedom 325 dual console boat stainless steel steering wheel.

Steering wheel - 316 grade stainless steel w/knob

Stereo - Deluxe stereo system w/waterproof touch screen display, AM/FM tuner, Wi-Fi & Bluetooth® connectivity, helm subwoofer & remote unit; speakers w/LED lights - bow (2), hardtop (4)

Grady-White Canyon 306, 30-foot center console stern eyes.

Stern eyes - 316 grade stainless steel

Storage - forward anchor locker w/rode storage

Grady-White Freedom 325 dual console boat port bow storage box.

Storage - port bow storage box

Canyon 326 center console tackle storage located in the transom

Storage - transom tackle storage compartment

Grady-White Freedom 325 dual console boat bow sun platform insert with cushion.

Sun platform insert w/cushion

Grady-White Freedom 325 dual console boat swim platforms

Swim platforms - aft port & starboard extensions w/starboard ladder & storage

Grady-White Freedom 325 dual console boat fiberglass bow table.

Table - fiberglass bow table (doubles as sun platform insert)

Freedom 325 dual console Grady-White boat transom door

Transom door - fiberglass

Washdown - freshwater

Washdown - pressurized raw water, forward & aft

Water tank - 30-gallon (114 l) freshwater

Grady-White Freedom 325 dual console boat windshield and windshield wiper.

Windshield - full protection walk-through tempered glass w/stainless steel header, electromechanically operated center vent & windbreak door

Windshield wipers - pantograph w/washer (2)

Console Interior

Accessory outlet - 5V duplex USB port (2)

Accessory outlet - 12V (1)

Carbon monoxide detector

Composite cherry & holly soles

Portside console w/sink, cedar lined storage closet, indirect lighting, extended storage area, fold down seat w/cushion & VacuFlush® head w/freshwater supply, 10-gallon (38 l) holding tank, overboard discharge & deck pump out

Starboard console w/cushioned berth, bulk storage & indirect lighting

OPTIONAL FEATURES

Options

Grady-White Freedom 325 32-foot dual console helm air conditioning

Air conditioning - 8,000 BTU in consoles w/2 outlets at helm (requires generator option)

Bow thruster

CE certification package (European Conformity)

Grady-White Freedom 325 32-foot dual console Fischer Panda generator

Generator - 5kW diesel (12-gallon) (45 l)

Grady-White Freedom 325 dual console boat hardtop with rod holders, speakers, and storage.

Hardtop color - underside of fiberglass hardtop (requires matching gelcoat hull color)

Hull color - Celestial Blue, Coastal Fog, Ocean Mist, or Sea Glass gelcoat

International AC electrical conversion - 220V (50Hz)

Grady-White Freedom 325 dual console underwater lighting.

Lighting - underwater blue LED (3)

Outrigger kit - 18-ft. (5.5 m) crank hardtop mounted stainless steel outriggers w/carbon fiber poles

Ski pylon (in lieu of rod holder)

Wet bar - Deluxe wet bar w/Corian® countertop, sink, stainless steel drawers (3), refrigerator & trash compartment (in lieu of companion lounge seat)

Canvas Options

Aft curtain (ivory)

Bow cover (ivory)

Drop curtain (ivory)

Easy up bow shade (ivory mesh)

performance

Freedom 325 Performance Data

300 Yamaha Four-Stroke

Twin

Top Speed: 48.5 MPH @ 5900 RPM

Optimum Cruise: 29.3 MPH @ 3700 RPM

GPH at Optimum Cruise: 19.0

MPG at Optimum Cruise: 1.54

350 Yamaha Four-Stroke

Twin

Top Speed: 53.9 MPH @ 6000 RPM

Optimum Cruise: 30.2 MPH @ 3700 RPM

GPH at Optimum Cruise: 20.7

MPG at Optimum Cruise: 1.46

300 Yamaha Four-Stroke

Twin

Engine Size

4.2L

Test Date

07/31/2017

Prop Size

15 1/2 X 17 SWS II SDS

Weight as Tested

13143 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop

Yes

Bow Pulpit

Bottom Paint

Optimum Cruise

29.3 MPH @ 3700 RPM

RPM	MPH	GPH	MPG
1000	6.3	2.5	2.55
1500	8.3	4.0	2.06
2000	10.0	6.6	1.52
2600	12.8	10.4	1.23
3000	16.7	13.3	1.26
3500	27.5	17.6	1.56
3700	29.3	19.0	1.54
4000	32.5	23.7	1.37
4500	37.5	30.8	1.22
5000	41.8	37.7	1.11
5500	45.8	47.0	0.97
5900	48.5	51.9	0.94

Back To Engines

PERFORMANCE DISCLAIMERS

The following variables can affect performance: wind, current, sea conditions, speed, engine performance, transducer, trolling time, engine trim, bottom paint, trim tabs, curtains, tops, gear placement and prop size/condition/type. This report should be used only as a general reference guide. Prop size, pitch and prop features listed in this performance report reflect the available props factory installed on new boats from Grady-White at this time. Props cited in the report may be an updated version(s) of the prop(s) used at the time of the test.

350 Yamaha Four-Stroke

Twin

Engine Size

4.3L

Test Date

3/27/24

Prop Size

15 1/4 X 19 SWS II SDS

Weight as Tested

13199 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop

Yes

Bow Pulpit

Bottom Paint

Optimum Cruise

30.2 MPH @ 3700 RPM

RPM	MPH	GPH	MPG
1000	6.1	2.5	2.44
1500	8.4	4.2	2.00
2000	10.0	7.0	1.43
2500	12.3	11.4	1.08
3000	16.6	15.0	1.11
3500	27.5	18.6	1.48
3700	30.2	20.7	1.46
4000	33.6	24.1	1.39
4500	39.2	29.4	1.33
5000	44.3	39.2	1.13
5500	49.4	52.4	0.94
6000	53.9	61.4	0.88

Back To Engines

PERFORMANCE DISCLAIMERS

300 Yamaha Four-Stroke

Twin

Engine Size

4.2L

Test Date

07/31/2017

Prop Size

15 1/2 X 17 SWS II SDS

Weight as Tested

13143 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop

Yes

Bow Pulpit

Bottom Paint

Optimum Cruise

29.3 MPH @ 3700 RPM

RPM	MPH	GPH	MPG
1000	6.3	2.5	2.55
1500	8.3	4.0	2.06
2000	10.0	6.6	1.52
2600	12.8	10.4	1.23
3000	16.7	13.3	1.26
3500	27.5	17.6	1.56
3700	29.3	19.0	1.54
4000	32.5	23.7	1.37
4500	37.5	30.8	1.22
5000	41.8	37.7	1.11
5500	45.8	47.0	0.97
5900	48.5	51.9	0.94

350 Yamaha Four-Stroke

Twin

Engine Size

4.3L

Test Date

3/27/24

Prop Size

15 1/4 X 19 SWS II SDS

Weight as Tested

13199 lb. (including persons, fuel, water, gear, engines & accessories)

Hardtop

Yes

Bow Pulpit

Bottom Paint

Optimum Cruise

30.2 MPH @ 3700 RPM

RPM	MPH	GPH	MPG
1000	6.1	2.5	2.44
1500	8.4	4.2	2.00
2000	10.0	7.0	1.43
2500	12.3	11.4	1.08
3000	16.6	15.0	1.11
3500	27.5	18.6	1.48
3700	30.2	20.7	1.46
4000	33.6	24.1	1.39
4500	39.2	29.4	1.33
5000	44.3	39.2	1.13
5500	49.4	52.4	0.94
6000	53.9	61.4	0.88
